Product Details

The MAGIC EEC allows the conversion from ETI to EDI and EDI to ETI signals.

Typical applications are Ensemble Multiplexers, which cannot generate an ETI signal any more (e.g. Fraunhofer ContentServer), but which must be fed to the transmitter via E1 lines with ETI or Ensemble Multiplexers, which only have ETI inputs/outputs (e.g. Rohde & Schwarz DM001), but which are to be fed via IP lines with EDI.

The system has two LAN interfaces by default. These are freely programmable in terms of functions, configuration, monitoring, SNMP and EDI input/output. The ETI interface has one G. 703/G. 704 input/output each.

The system is configured via the PC software included in the scope of delivery and displays the status of the ETI or EDI input data streams and all system parameters in a very clear manner. All events are stored in the device in a log file, which can be retrieved via the PC software or alternatively stored in a network folder.

MAGIC EEC supports SNMP v1/v2c protocol for connection to up to four independent network management systems.

In addition, alarm messages can be output via eight potential-free and programmable contacts. Alternatively, eight programmable TTL GPIO contacts are available.

Options

Monitoring Output

A second ETI module can be optionally equipped, which means that an additional unrestricted ETI output is available. This can be used, for example, as a monitoring output or to supply a redundant Ensemble Multiplexer.

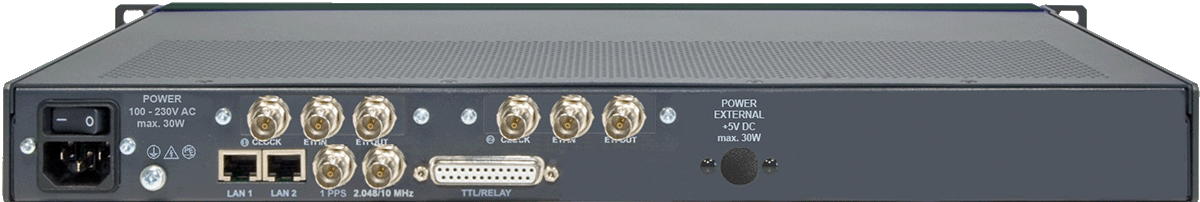

MAGIC EEC  Monitoring



SDC Upgrade

The optional SDC upgrade allows a MAGIC EEC system to be upgraded to a full-featured MAGIC SDC Switch & Converter.

Dual Converter Mode

With this upgrade, MAGIC EEC has two independent ETI/EDI converters. For the Dual Converter mode, you need a MAGIC EEC with monitoring output (second ETI module).

Dual LAN Upgrade

With the Dual LAN Upgrade, the system can be expanded by two additional LAN interfaces, so that a total of four LAN interfaces are available. The assignment of functions such as EDI, SNMP etc. is freely configurable.

Please note that either the Dual LAN module or a second ETI module can be equipped.

Redundant power supply

Optionally a redundant power supply can be used, the 5V DC table power supply is included in this hardware upgrade.

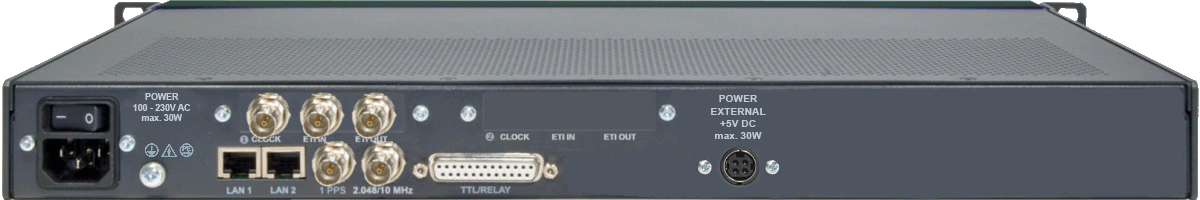

MAGIC EEC rPSU

N+1 Redundancy Upgrade

The N+1 redundancy upgrade adds an additional EDI input to the system to enable non-seamless redundancy switching in the event of errors in the EDI input signal of the main path. This option provides a cost-effective N+1 redundancy solution using our MAGIC DABMUX Go or MAGIC DABMUX plus in an N+1 multiplex setup.

This feature is only available in EDI → ETI conversion mode.
